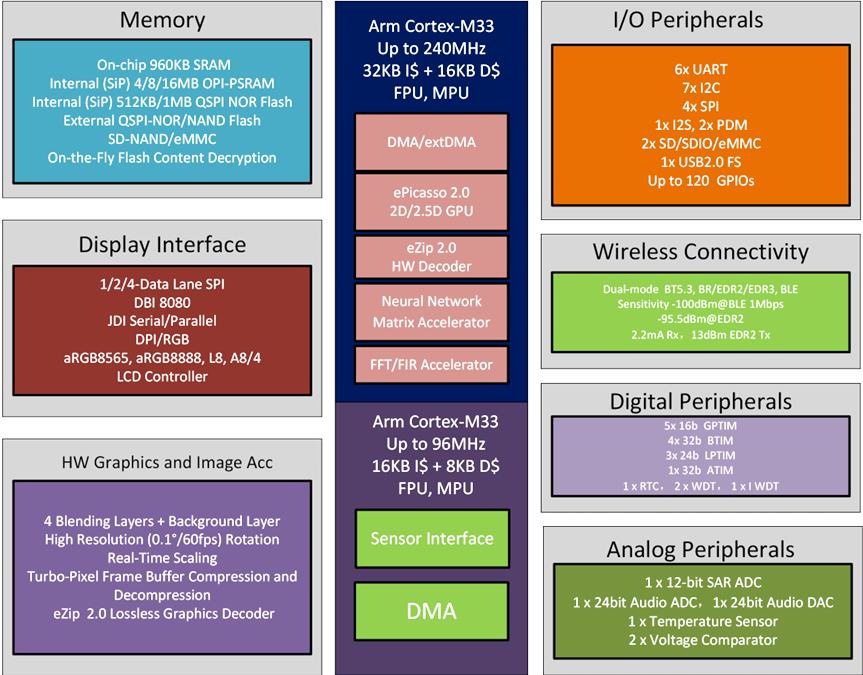

SF32LB56x is a series of highly integrated, high-performance MCU chips designed specifically for ultra-low-power artificial intelligence of things (AIoT) scenarios. The chip features a big.LITTLE architecture based on the Arm Cortex-M33 processor, and integrates a high-performance 2D/2.5D graphics engine, an AI neural network accelerator, dual-mode Bluetooth 5.3, and an audio CODEC. It is widely suitable for various application scenarios, such as wristband-type wearable devices, smart mobile terminals, and smart home systems.
The SF32LB56x series supports the following display interfaces:
- DPI/RGB888, RGB565 (for models 566VCB36 and 567VND36)
- SPI/DSPI/QSPI, including SPI interfaces for e-ink displays
- 8080-8bit
| 芯片 | 子型号 | 封装 | GPIO | SiP QSPI-NOR Flash | SiP OPI-PSRAM | Power Supply |
| SF32LB | 560UNN36 | QFN68L | 44 | 512KB | NA | 1.71~3.63V |
| SF32LB | 561UBN26 | QFN68L | 44 | 512KB | 4MB | 1.71~3.63V |
| SF32LB | 563UCN26 | QFN68L | 44 | 512KB | 8MB | 1.71~3.63V |
| SF32LB | 56WUND26 | QFN68L | 44 | 512KB | 16MB | 1.71~3.63V |
| SF32LB | 566VCB36 | BGA175 | 120 | 1MB | 4+8MB | 1.71~3.63V |
| SF32LB | 567VND36 | BGA175 | 120 | 1MB | 16MB | 1.71~3.63V |
