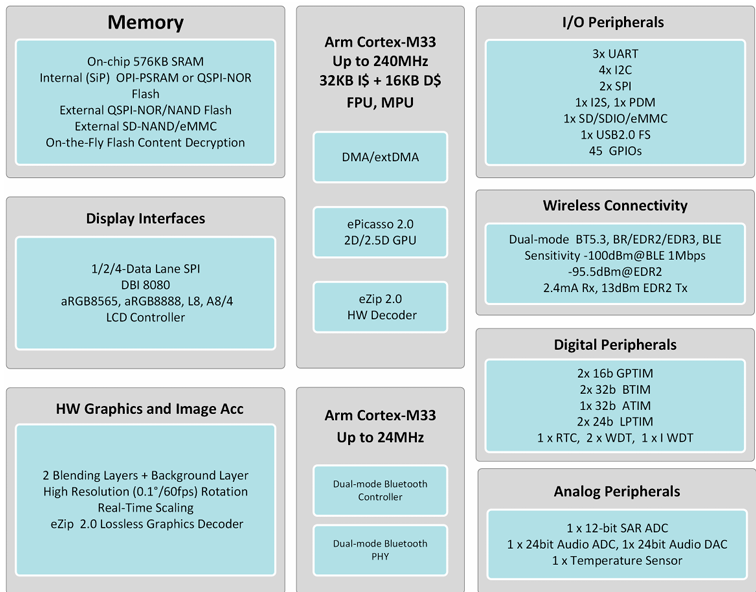

SF32LB52X

SF32LB52x/X:

• x represents a number and belongs to the lithium-ion battery-powered series, such as SF32LB520/3/5/7, which are pin-to-pin compatible with each other.
• X represents certain letters and belongs to the standard 3.3V-powered series, including SF32LB52B/E, which are pin-to-pin compatible with each other.
• X represents certain letters and belongs to the special 1.8V-powered series, including SF32LB52A/D, intended for ultra-low-power applications.
• The two series, where x is a digit and X is a letter, are independent and not pin-to-pin compatible. Although the 3.3V and 1.8V models can align pin-to-pin, they are not voltage-compatible and therefore not compatible. The corresponding relationships based on co-packaged content are as follows:
  • Battery   3.3V  1.8V
  • 520 – 52B
  • 523 – 52E – 52D
  • 525 – 52G
  • 527 – 52J

The SF32LB52x series supports the following display interfaces:

• SPI/DSPI/QSPI, including an SPI interface for e-ink displays
• 8080-8bit

For more chip documentation, please visit:https://wiki.sifli.com/silicon/product-index.html#sf32lb52x

For chip hardware design reference, please see:https://wiki.sifli.com/hardware/SF32LB520-3-5-7-HW-Application.html
